For Texecom Premier Elite alarms

Your Texecom alarm, at home in Home Assistant.

Arm, disarm and see every zone, through the SmartCom you already have.

Add to Home Assistant View on GitHub Read the docs

Free and open source. Unofficial: not made by Texecom.

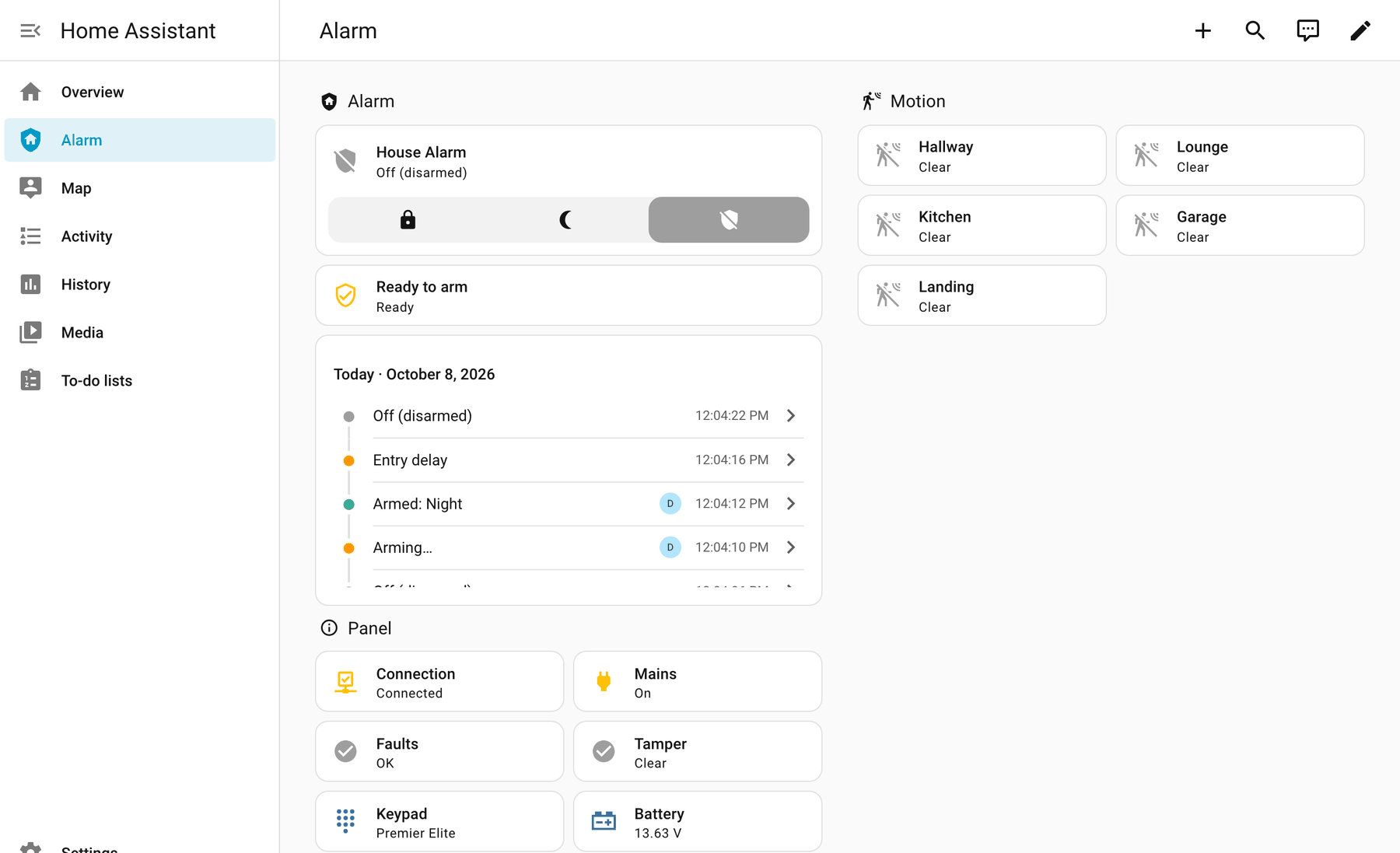

The Alarm dashboard in Home Assistant: the alarm with its Away, Night and Off buttons, Ready to arm, the day's activity, panel health, and every motion zone showing Clear

What you get.

The alarm you use every day, in the same Home Assistant you use for the rest of your home.

  • Arm and disarm

    Away, Night and Home (your panel's part arms), or off. See when it's arming, waiting for you to come in, or going off.

  • A sensor for every zone

    Named as on your panel: doors, windows, motion, smoke and gas. Changes at the keypad show straight away.

  • Panel health

    The connection, mains power, battery and tampers, and what the keypad says.

  • Who did it

    Changed by Sam, not User 3, with the names stored in your panel filled in for you.

  • A ready-made dashboard

    An Alarm dashboard, built for you at the end of setup from Home Assistant's own cards.

  • Notifications

    When the alarm couldn't arm, the panel is on battery, or a tamper opens, saying what to check.

  • One-click automations

    Arm when everyone leaves (or ask you first), and tell your phone when the alarm goes off.

    Add them

  • Ready in minutes

    Type your SmartCom's address and the panel's UDL code, and Home Assistant reads your zones. No YAML, no add-on, no MQTT.

  • Apple Home too

    Through Home Assistant's built-in HomeKit Bridge: the Home app, Siri and critical alerts.

    How to

Feels built in.

The alarm, doors, motion and smoke detectors turn up wherever Home Assistant expects them: the Security summary, each room, the Logbook and History. Zones named after a room you already have go straight into it.

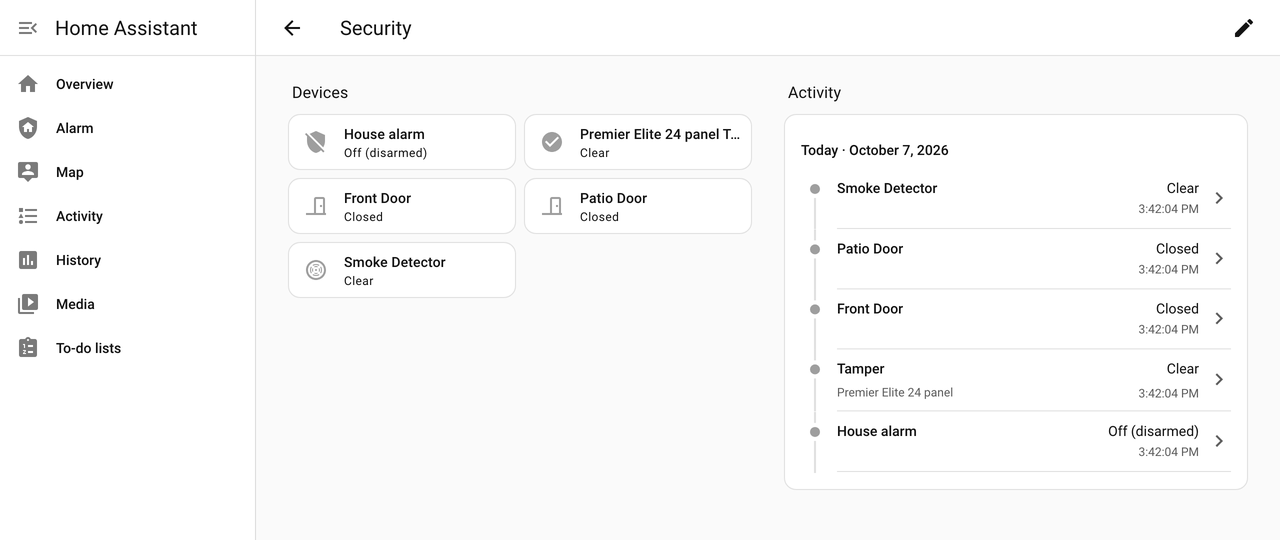

Home Assistant's own Security page listing the house alarm, the panel's tamper, the front and patio doors and a smoke detector, with their recent activity

Plain words, not codes.

When the alarm couldn't arm, the panel loses its mains power, or a tamper opens, Home Assistant says what happened and what to check.

The activity list reads the same way: didn't arm: Front Door was active, set off by Kitchen, keypad used by Sam.

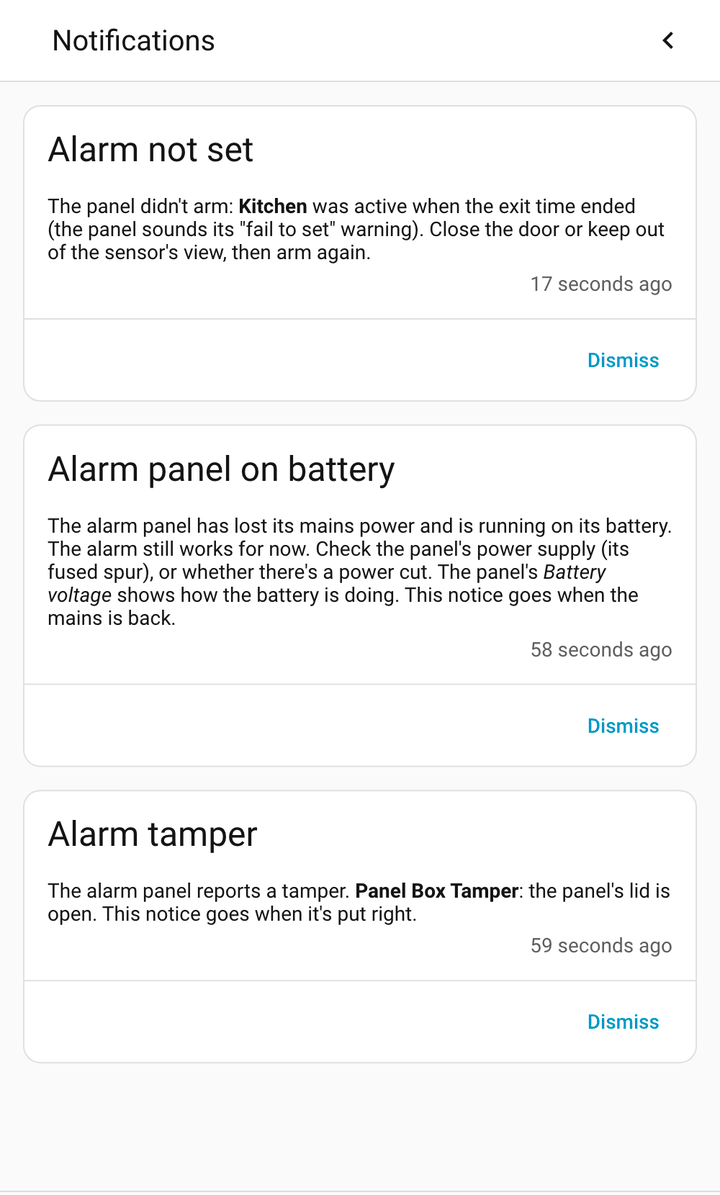

Three Home Assistant notifications: Alarm not set, because Kitchen was active when the exit time ended; Alarm panel on battery; and Alarm tamper, because the panel's lid is open

Works with the module you already have.

Two ways in. Most people use the first.

  • Texecom Connect

    Through your panel's communicator

    Over your home network, to the module already on your panel. Everything on this page works this way.

    • SmartCom
    • ComIP
    • ComWiFi

  • Crestron

    Through a spare COM port

    A COM port set to Crestron System, through a serial-to-network adapter or a USB-serial cable. Zones and arming with fewer extras, and the Texecom app keeps its SmartCom.

    What differs

The SmartCom talks to one thing at a time: while Home Assistant is connected, the Texecom app can't. Your alarm, and the app's alarm notifications, carry on as normal.

Tested on Elite 12, 24, 64 and 168. So far.

Each panel on the list links to what was tried on it. Tried it on yours? Every report helps, even if it all just worked.

See the tested panels Tell us how it went

Up and running in three steps.

  1. Add it to Home Assistant

    Click Add to Home Assistant, then Download and restart (HACS), or Install (the Marketplace, from Home Assistant 2026.11).

  2. Point it at your panel

    Add the Texecom integration, choose Texecom Connect, and type your SmartCom's address (from your router's list of devices) and the panel's UDL code.

  3. Choose your arm modes

    Pick the part arms Night and Home use, keep the Alarm dashboard ticked, and you're done.

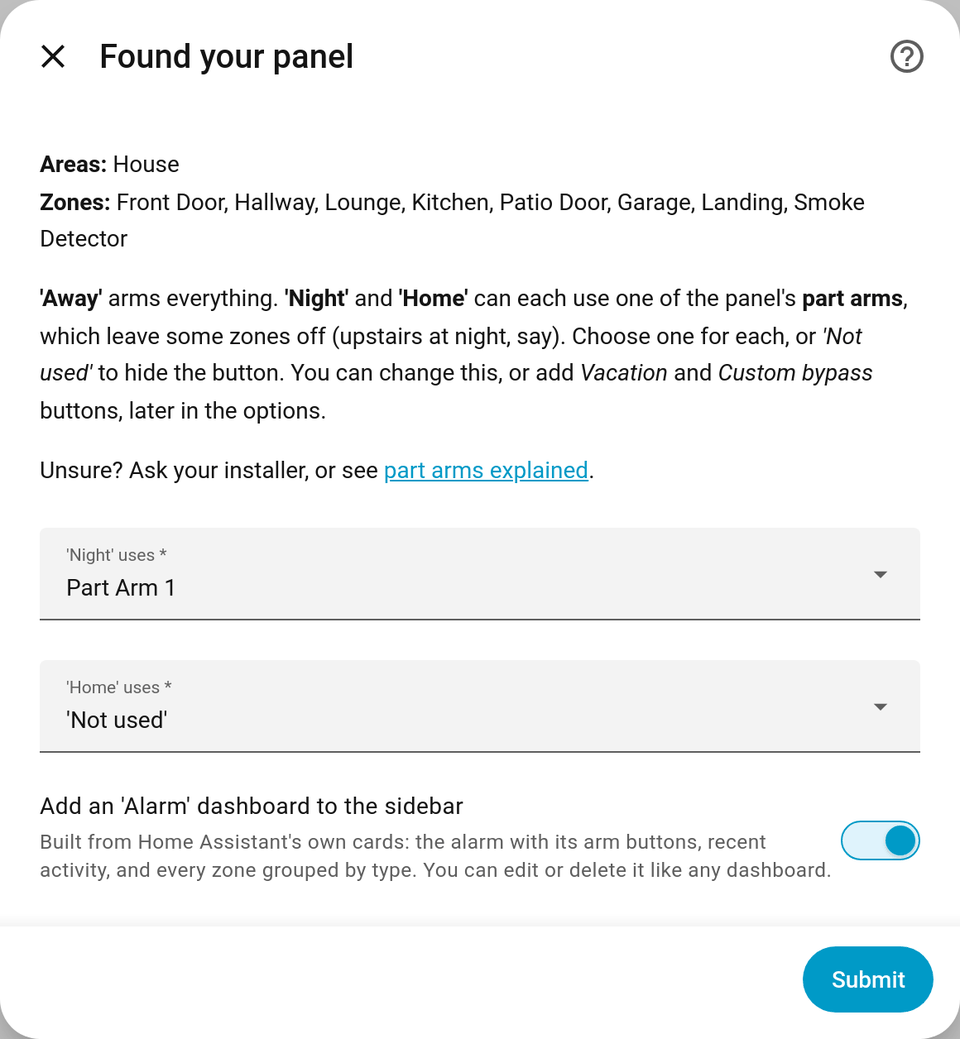

The setup screen Found your panel: the areas and zones read from the panel, a choice of part arm for Night and Home, and Add an Alarm dashboard to the sidebar switched on
Add to Home Assistant Step-by-step guide

You'll need a Premier Elite panel with a SmartCom, ComIP or ComWiFi (or a COM port set to Crestron), the panel's UDL code (its remote-access code), and Home Assistant 2025.7 or newer. With a SmartCom, ComIP or ComWiFi, nothing needs changing on the panel or in the Texecom app.

It does what you ask. Nothing more.

  • Arms only when asked

    It arms or disarms your alarm only when you, or an automation you set up, ask it to.

  • Leaves your programming alone

    It never changes the panel's programming. It can keep the panel's clock right, and you can switch that off.

  • Keeps your codes private

    Keypad codes are never used or stored. The UDL code is kept like any integration's password, and diagnostics leave it out.

It isn't a certified security product or a replacement for your alarm's own keypads, monitoring or app.
